Thompson Construction

Also known as McNaughton-Yamada-Thompson algorithm. An algorithm for converting a regular expression into an NFA-$\Lambda$.

Steps

• Break the regular expression into subexpressions
• Construct basic automata
• Combine them using inductive rules

Basis Automata

For $\set{a}, \set{ \Lambda }$, connect from the starting state to the accepting state for the input.

For $\emptyset$, no diagrams.

Rules

Suppose $N(s)$ and $N(t)$ are NFA-$\Lambda$ for $s$ and $t$ respectively.

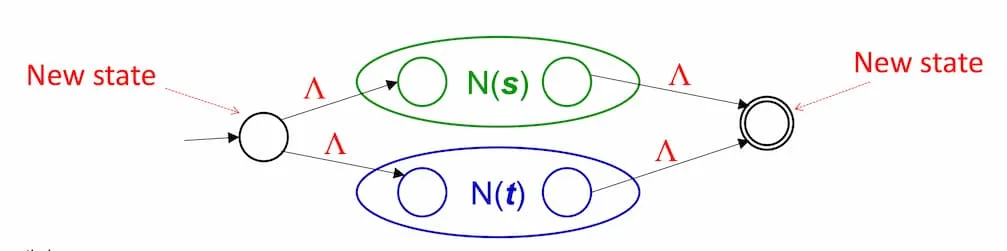

Union

For strings either $s$ or $t$.

Concatenation

For strings $st$.

Kleene Star

For strings $s*$.

Properties of Thompson Automata

• Exactly one start state
• Exactly one accept state
• No incoming edges to start state
• No outgoing edges from accept state
• The number of transitions leaving any state is at most two.
